Replace worn components with a complete hydraulic disc brake setup for compatible 110cc–125cc off-road vehicles. Front and rear calipers, a master cylinder, hydraulic hoses and pre-installed brake pads are supplied together for your replacement job.
Use the kit on a quad bike, dirt bike, dune buggy or go kart with a hydraulic disc brake system. The front and rear hoses have different lengths to suit their respective applications.
Highlights & material specs
-

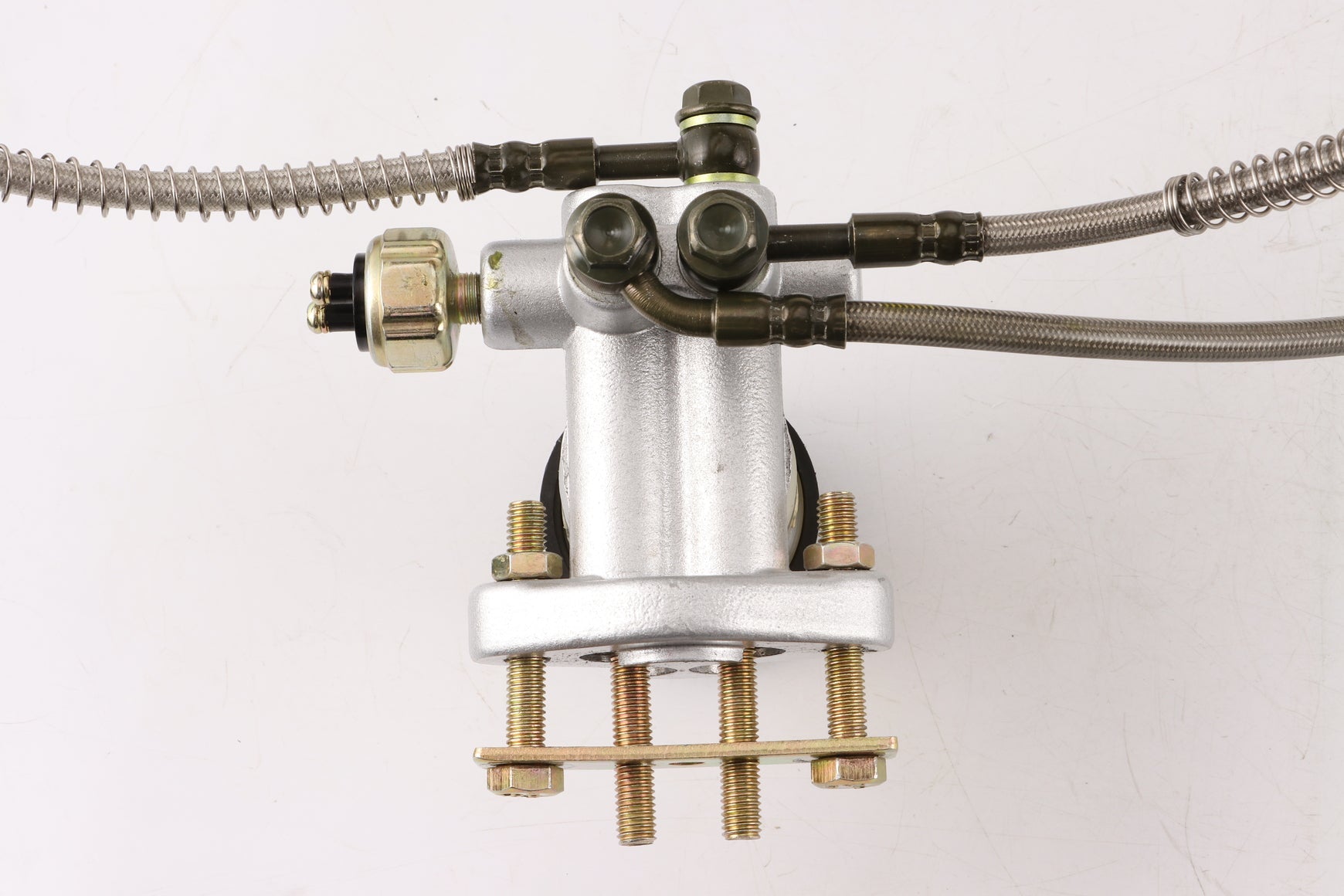

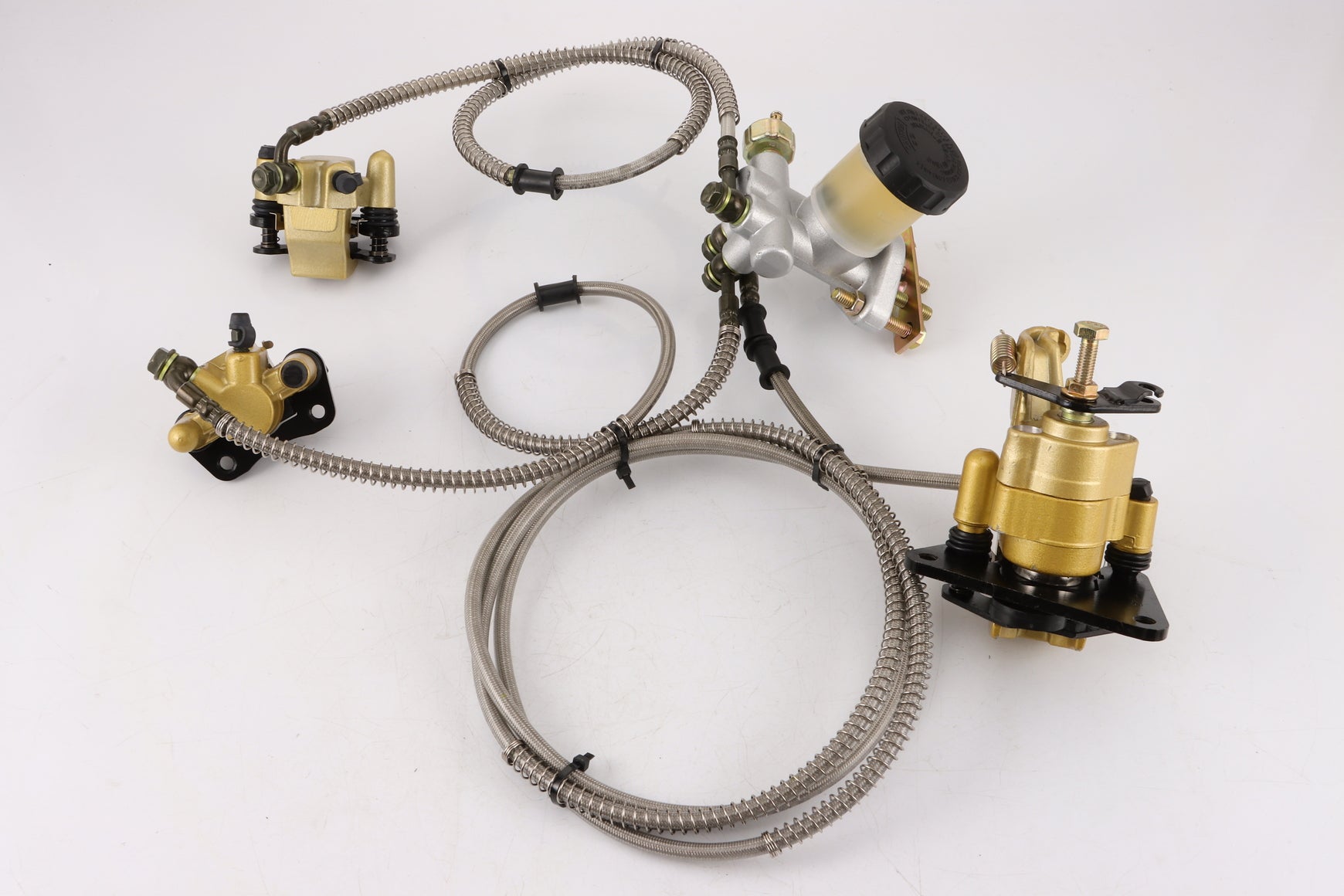

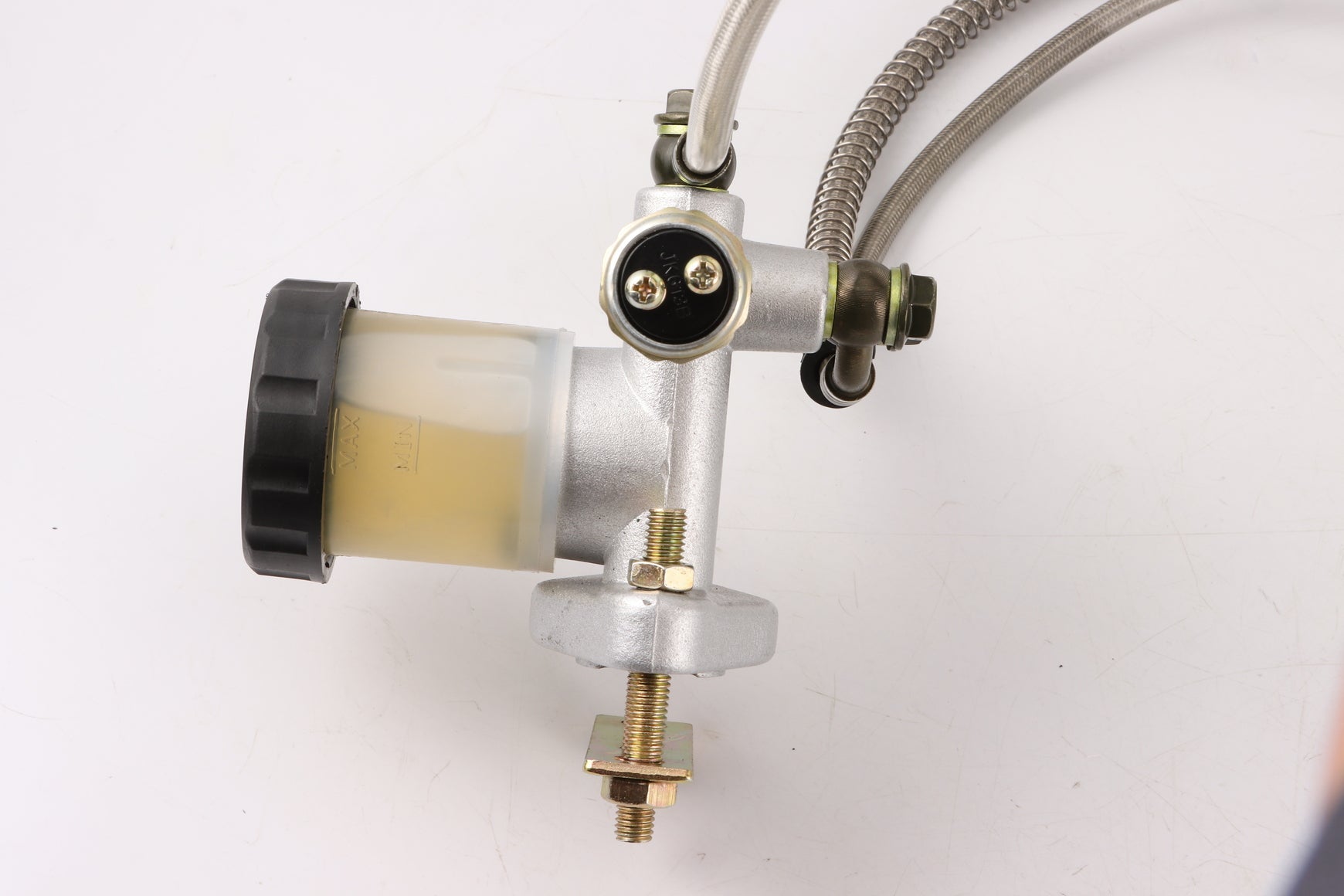

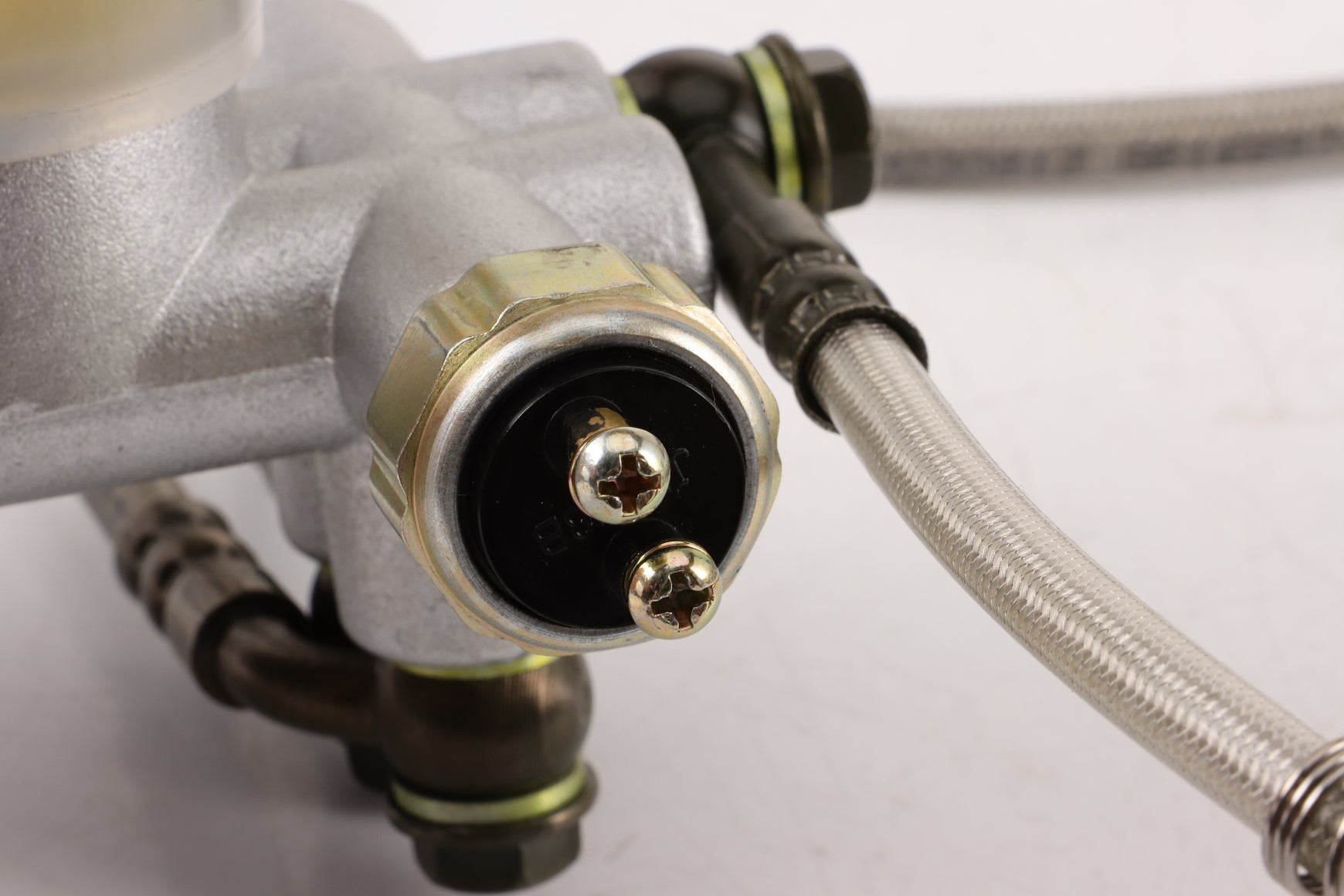

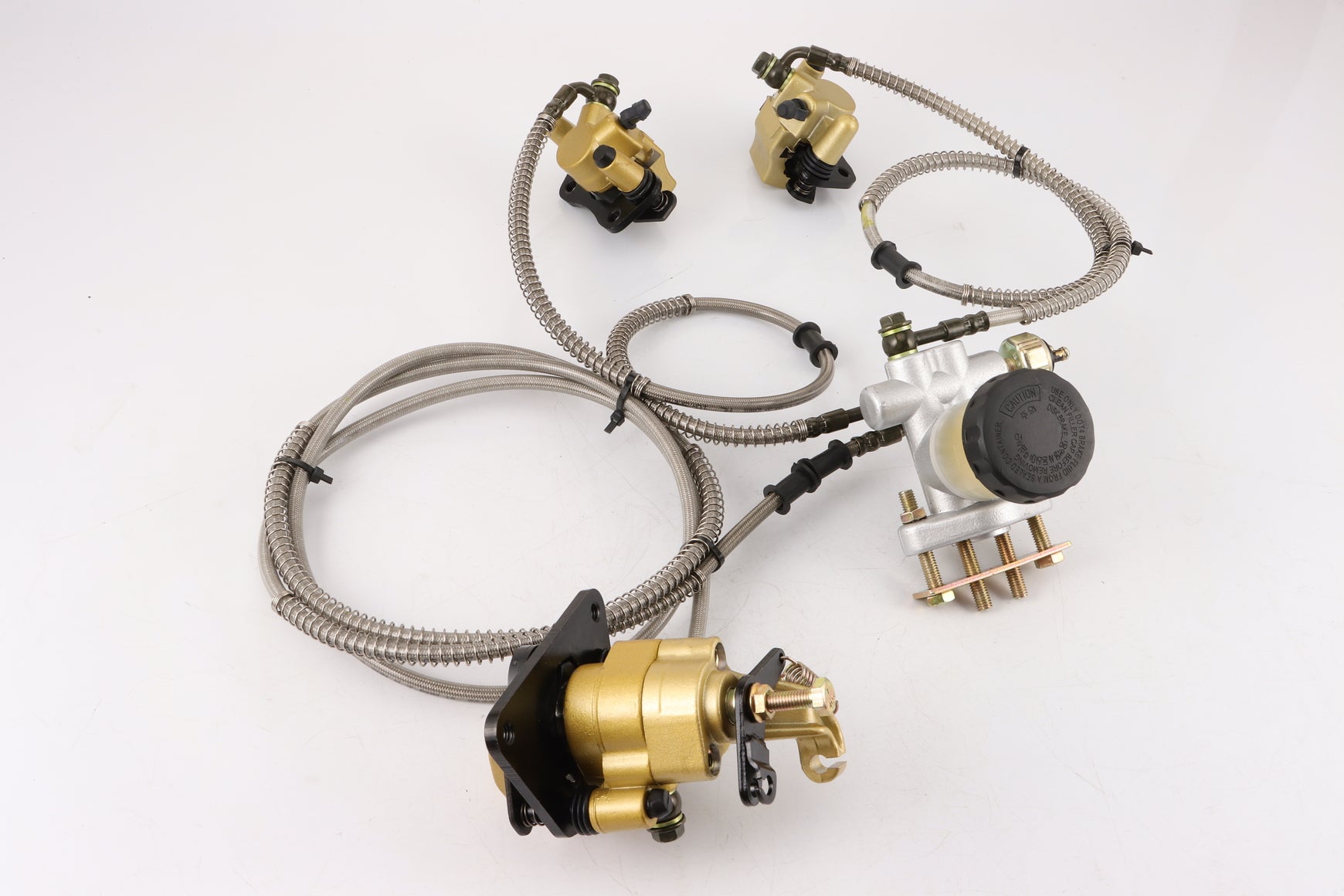

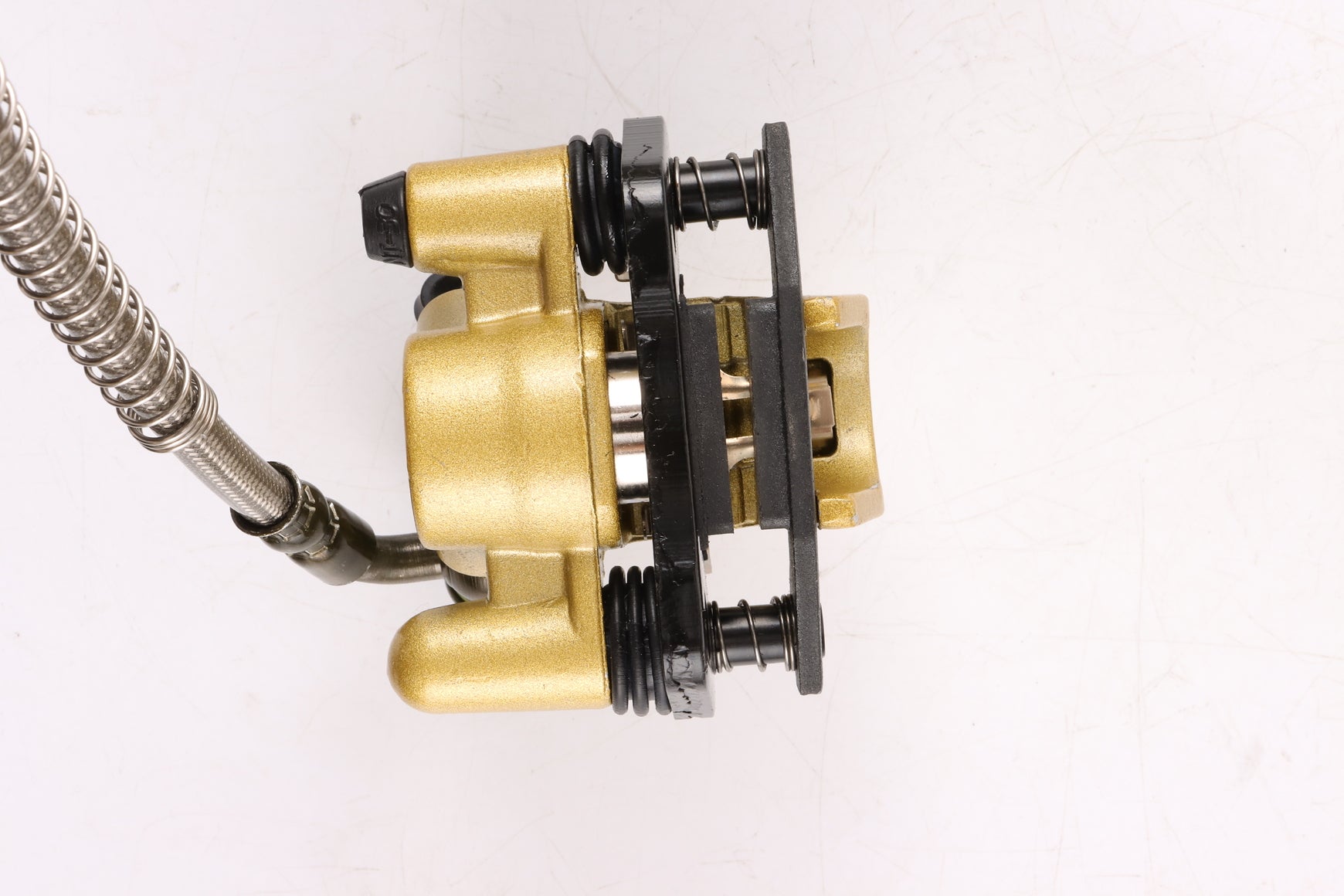

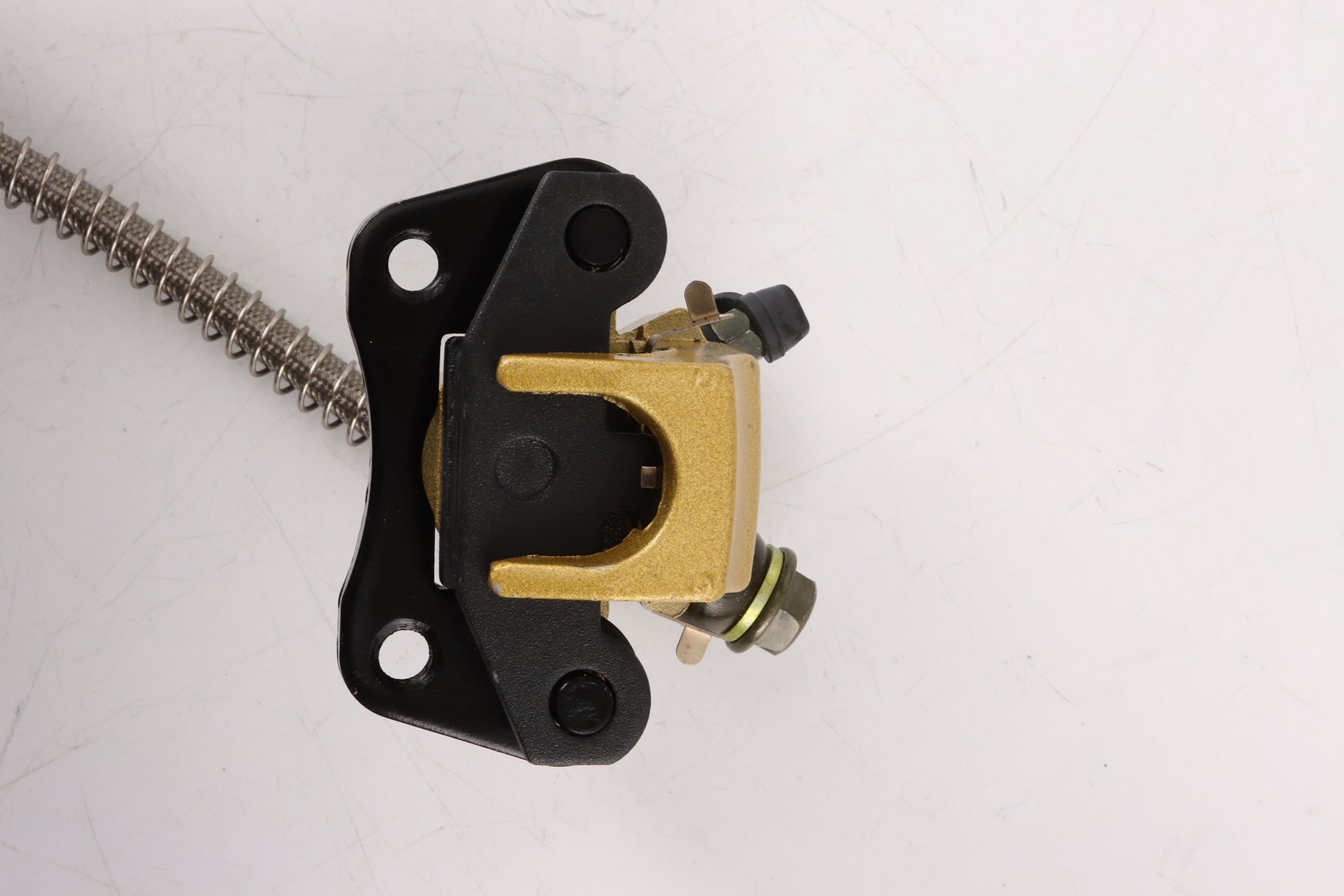

Complete system: Includes front left, front right and rear hydraulic calipers with hoses, plus a master cylinder assembly.
-

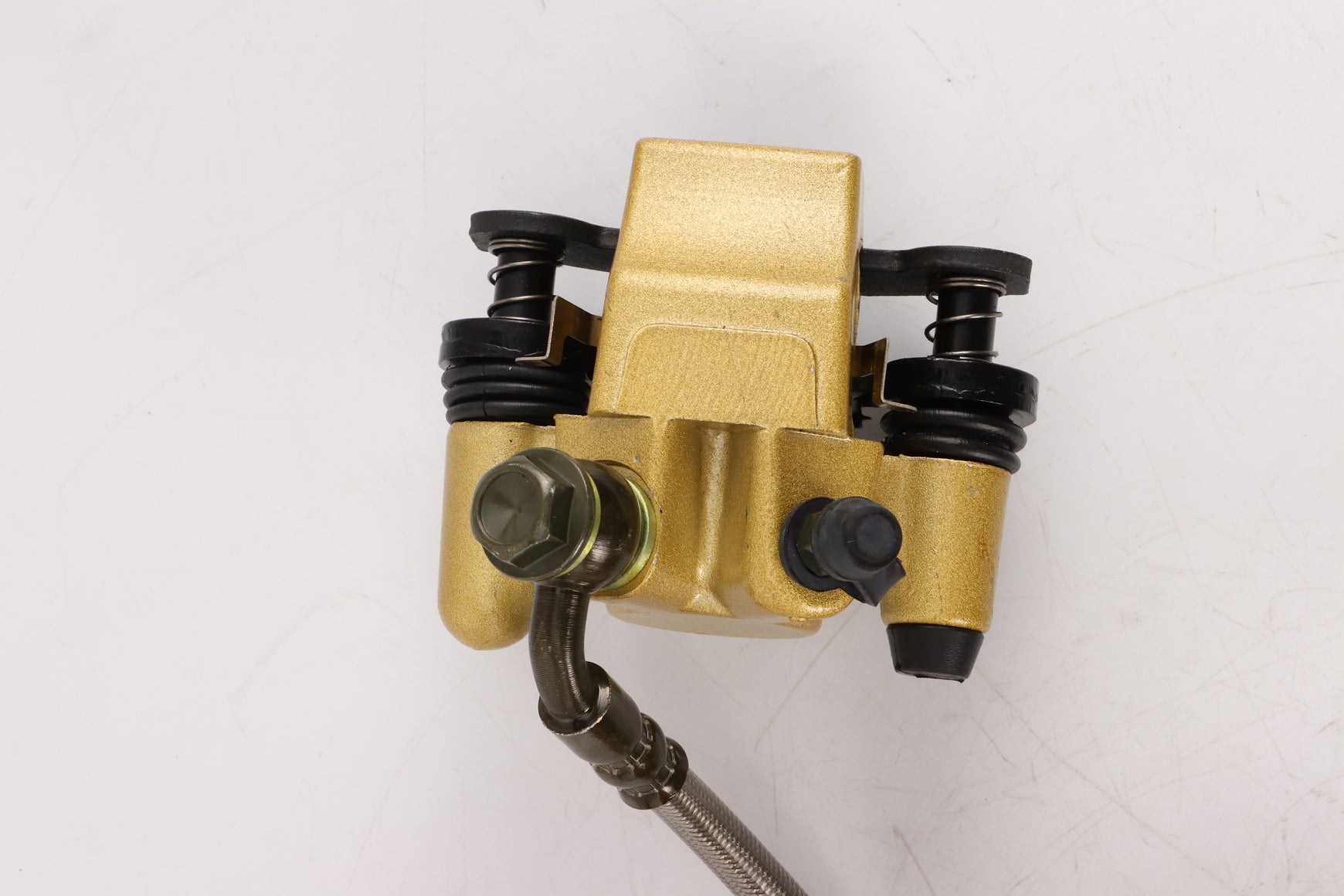

Pre-installed pads: Brake pads arrive fitted to the calipers to simplify installation.
-
Hose type: Hydraulic brake hose.
-
Replacement part: This is an aftermarket kit, not an OEM part.
Precise model fitment
Designed for many 110cc–125cc quad bikes, dirt bikes, go karts and dune buggies using hydraulic disc brakes. Fitment can vary, so compare the measurements below with your existing brake components before purchasing.
Installation & dimensions
-
Front left hose: Approximately 460 mm long.
-
Front right hose: Approximately 725 mm long.
-
Rear hose: Approximately 1640 mm long.
-

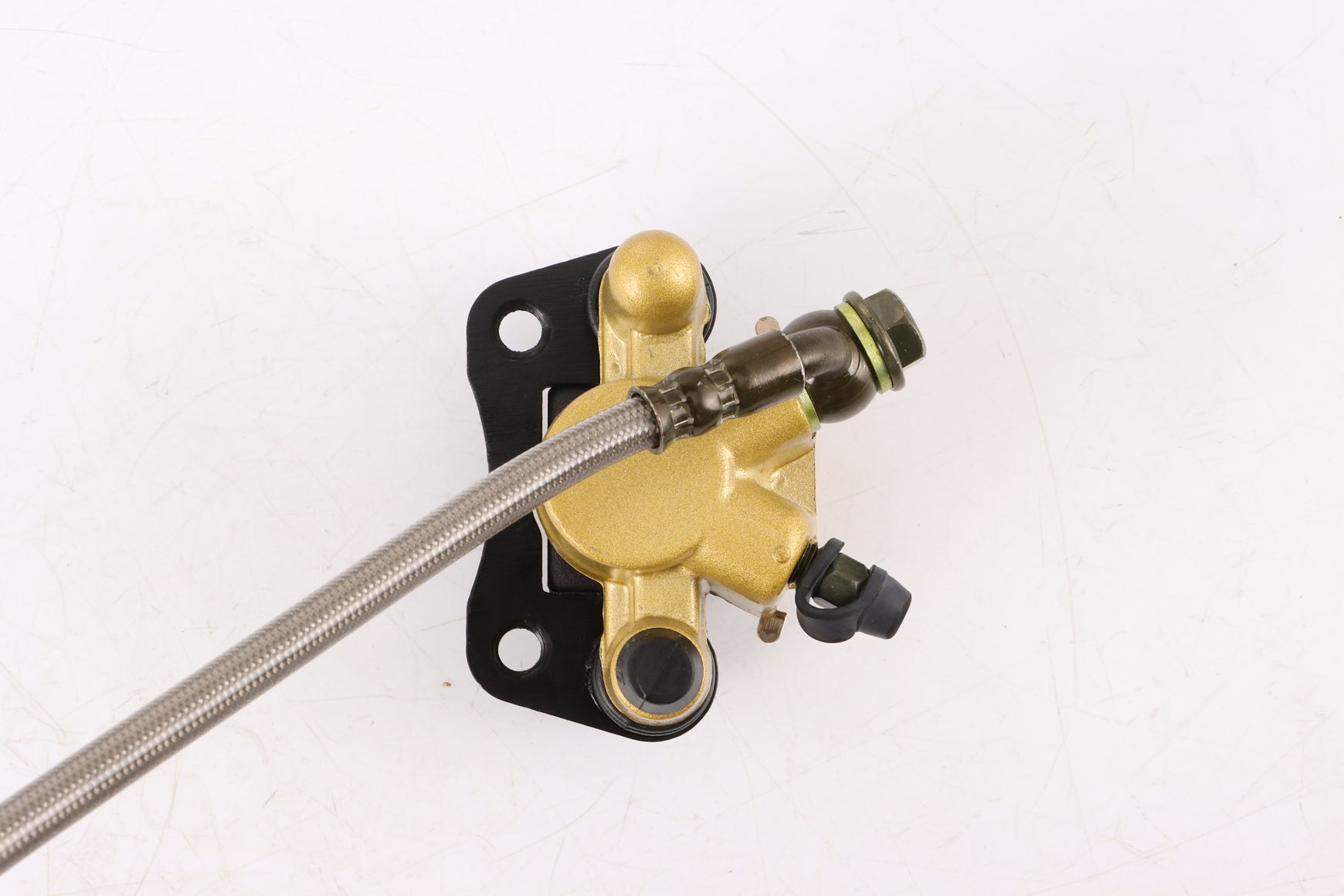

Front caliper mount: Approximately 49 mm centre-to-centre hole spacing.
-

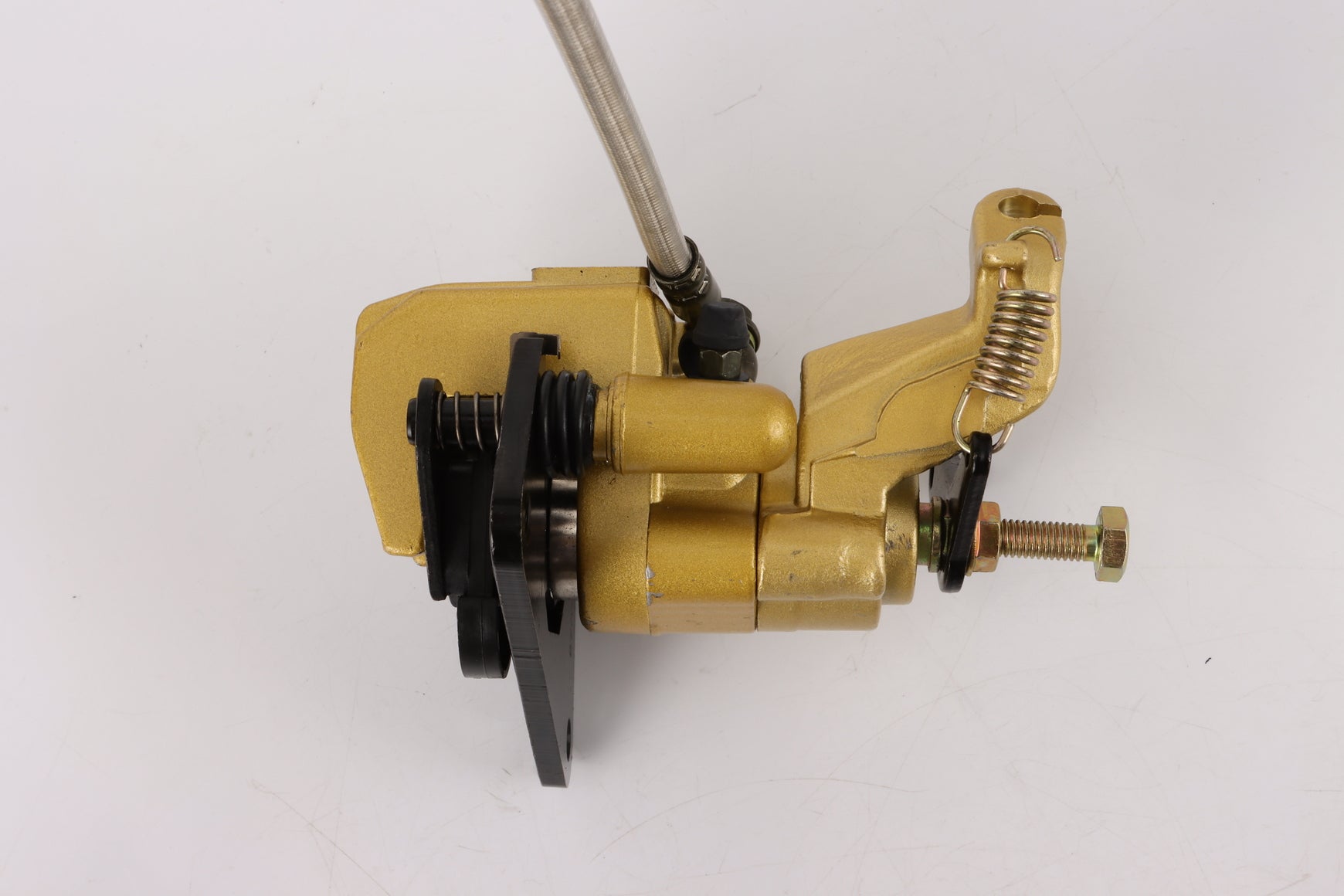

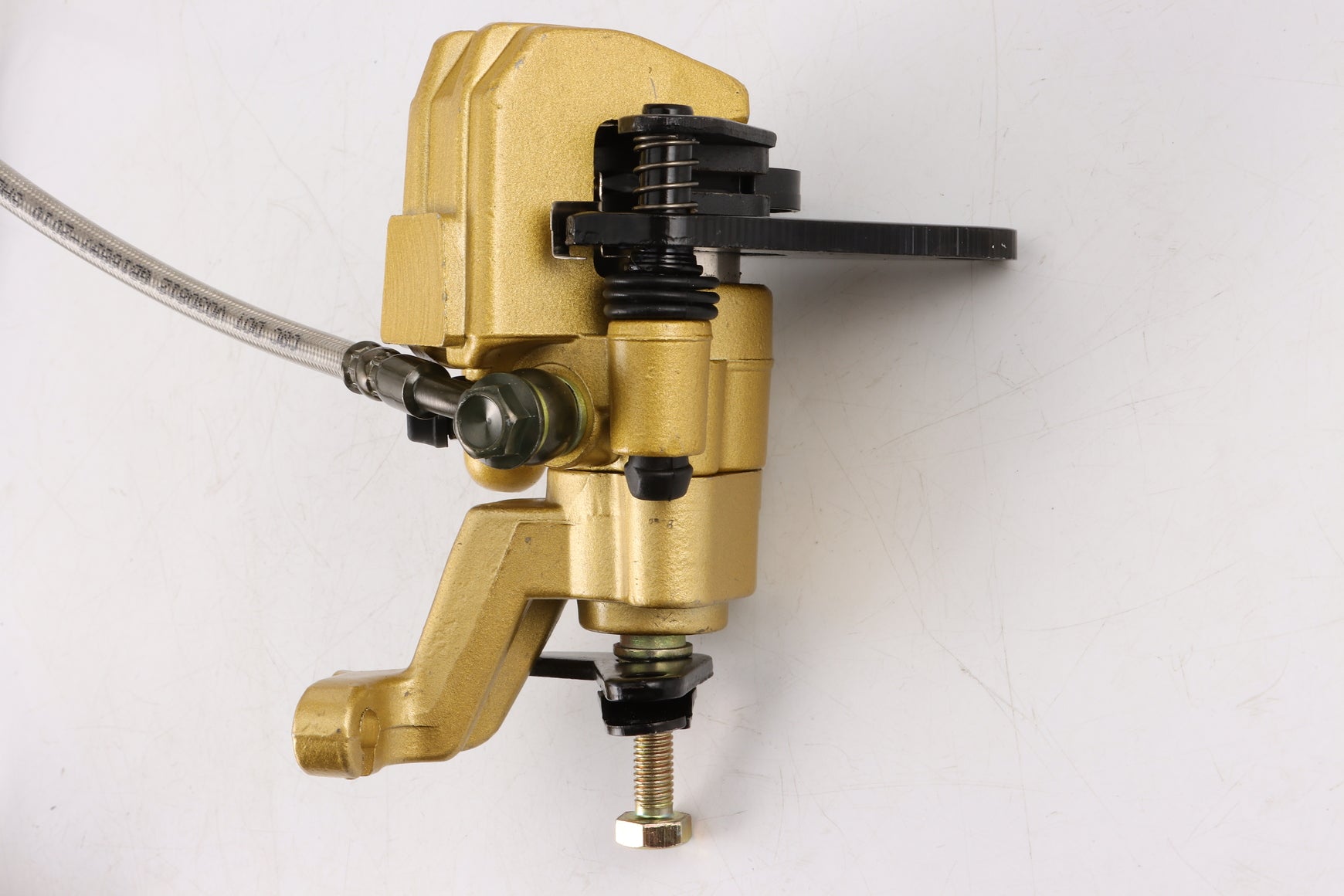

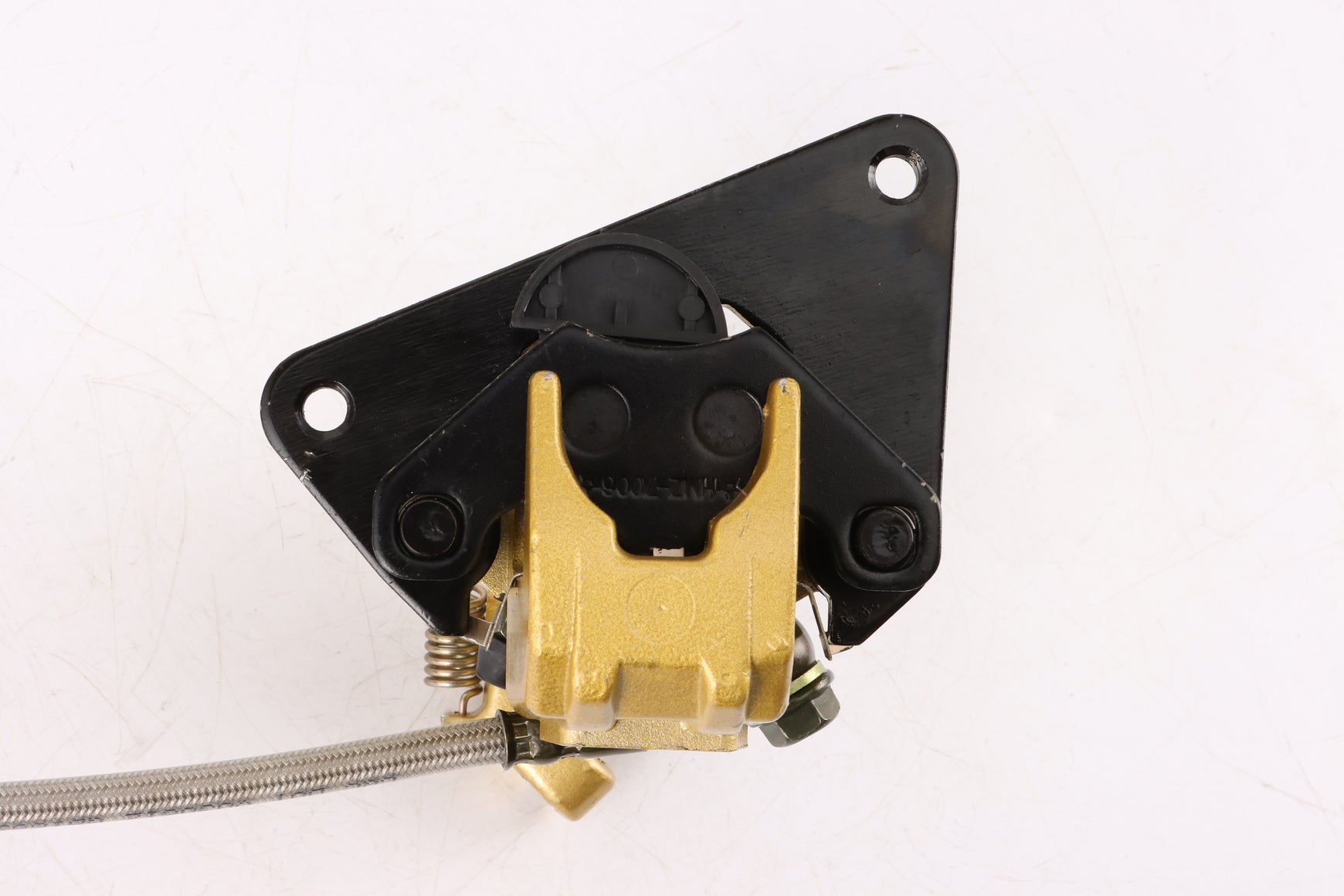

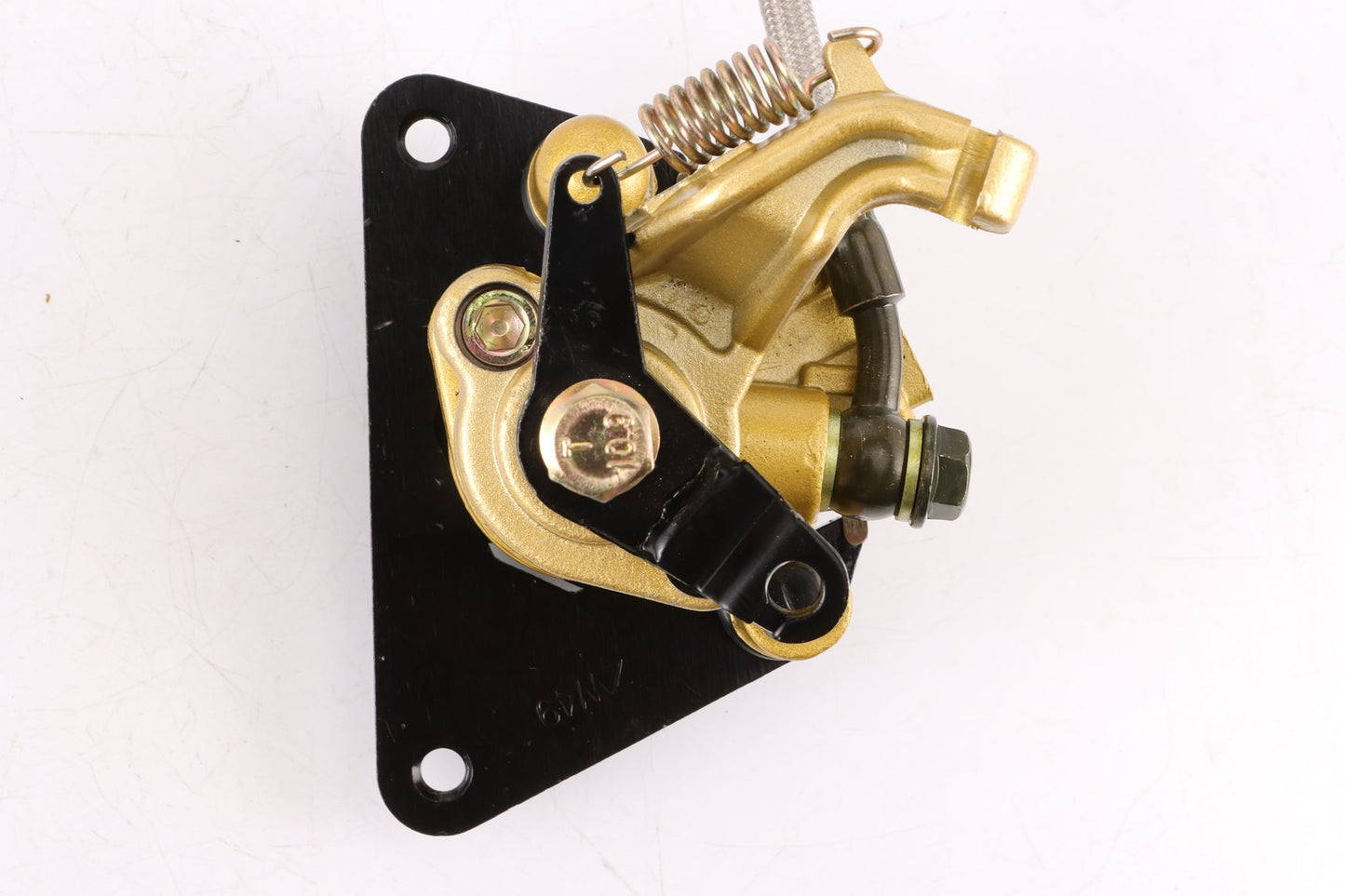

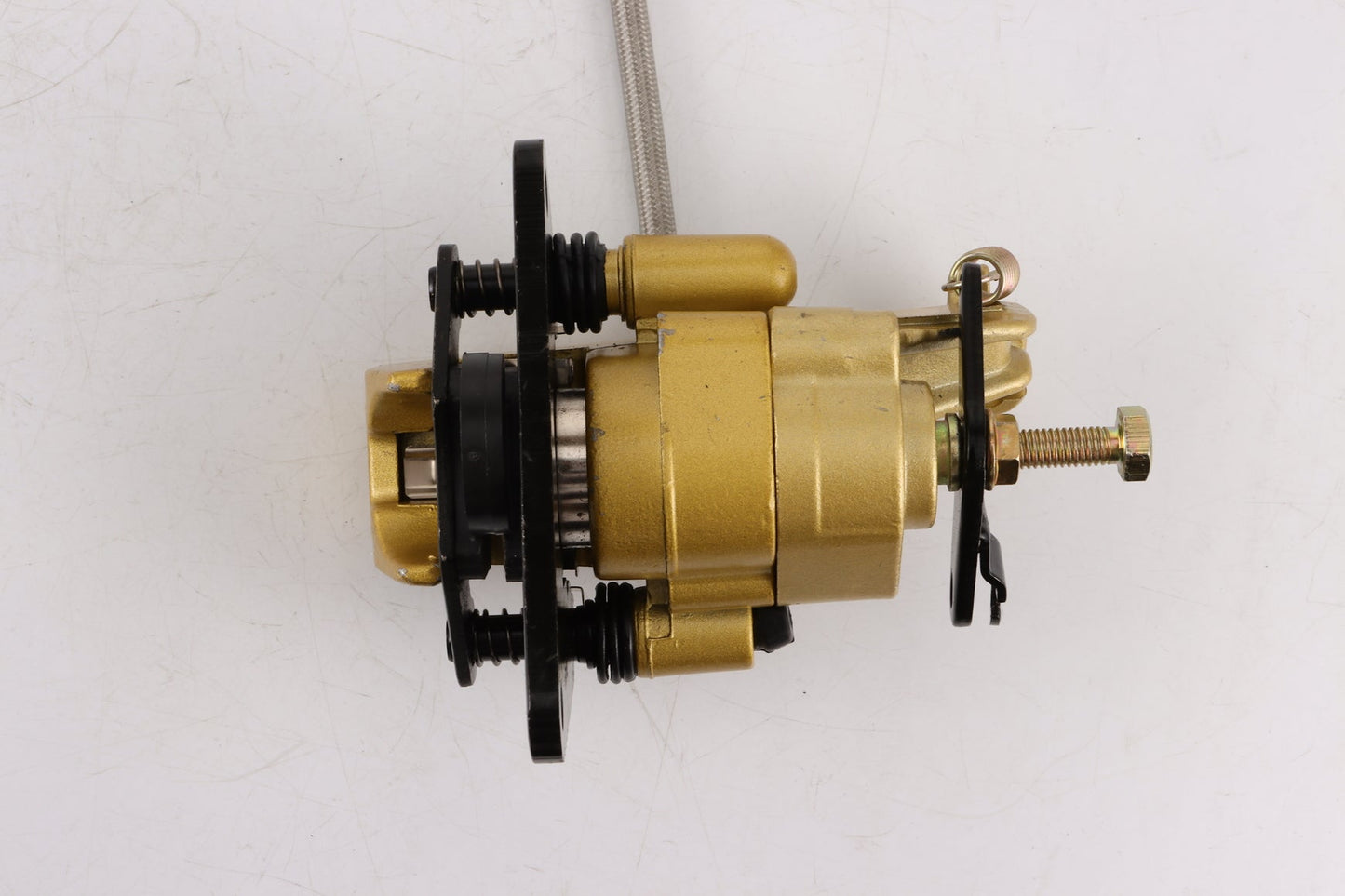

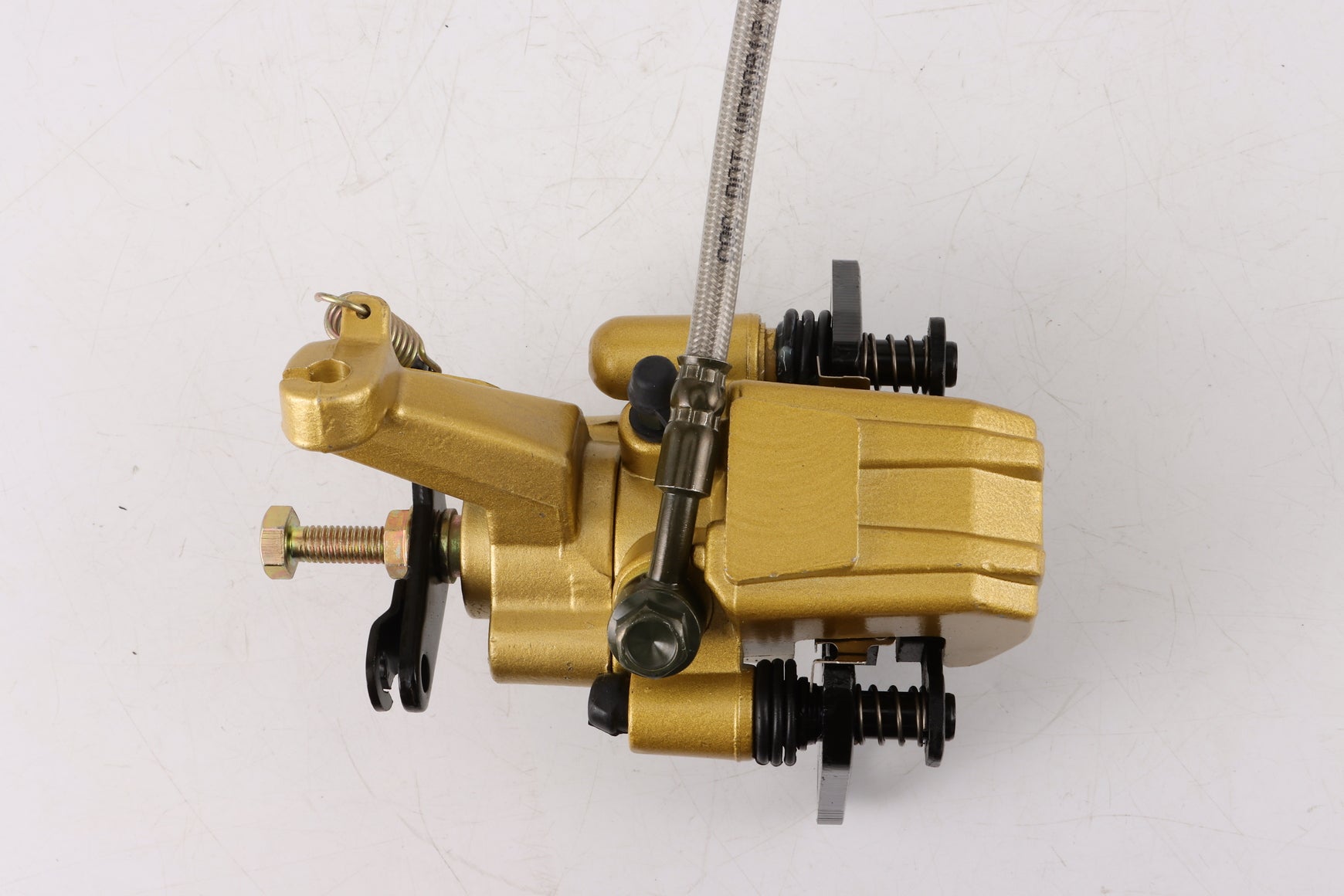

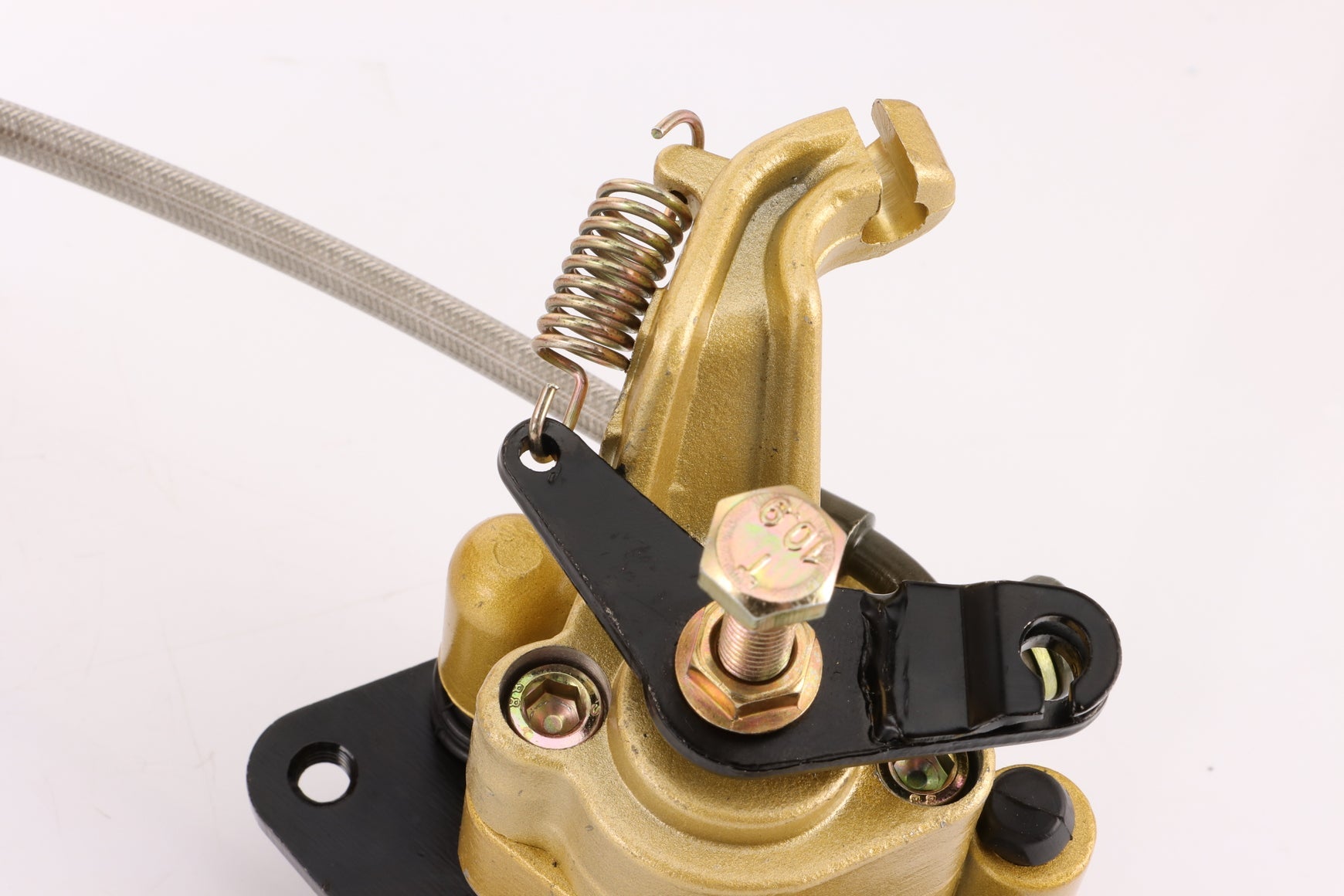

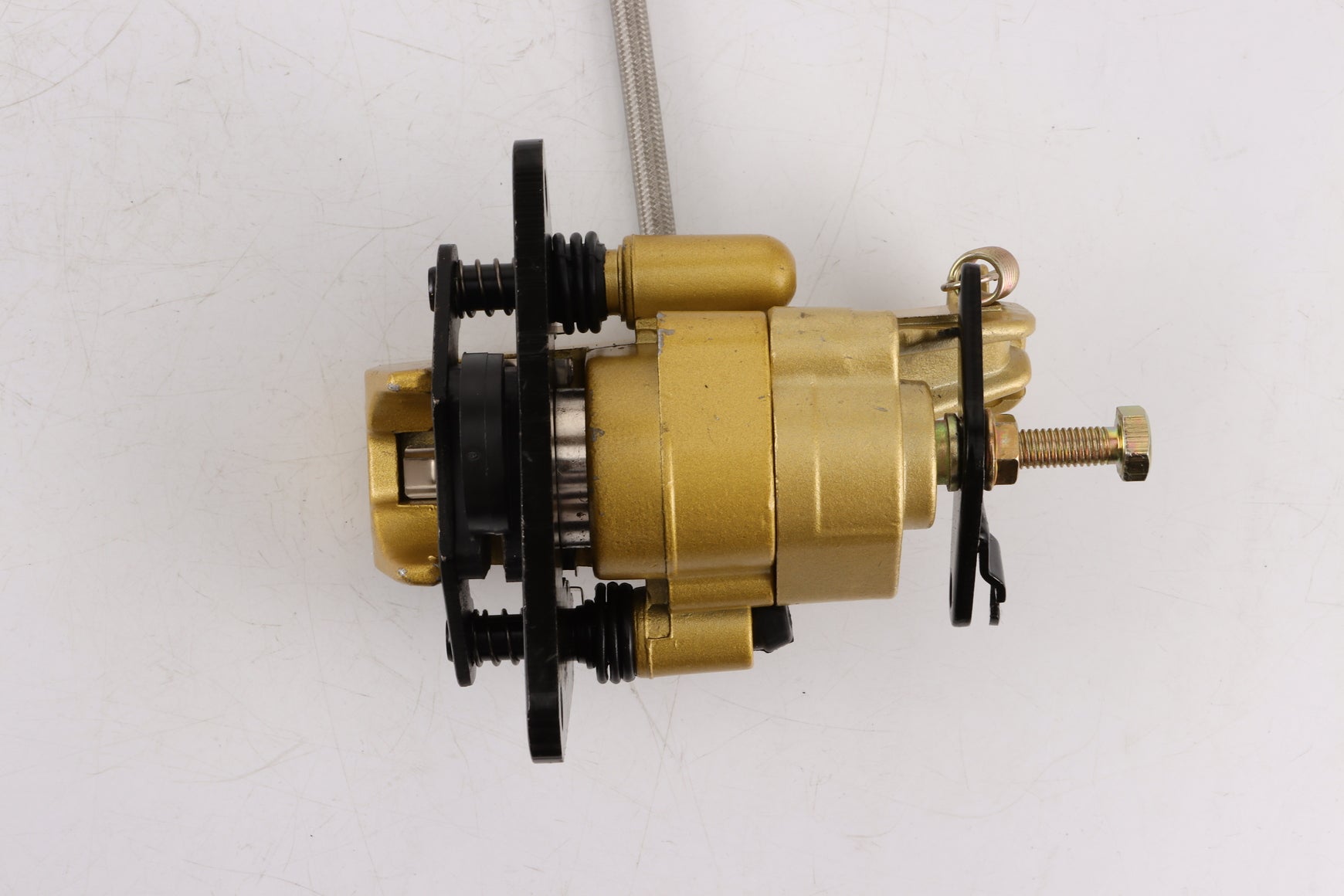

Rear caliper mount: Approximately 95 mm centre-to-centre hole spacing.
